Product Name： |

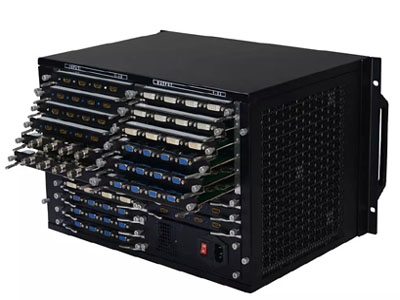

Multi screen splicing processor |
|
Description： |
|
|
Introduction：
|
Blending processor attention to multiple high-definition projection to achieve seamless tiled display applications, in the projection display terminals also display many dynamic pictures, with the integration of edge with emergence, color correction, geometric correction etc. function, to achieve beautiful large screen, pure color, high resolution display effect. System can deal with up to 36 projector seamless constitute a single logical screen, real-time processing up to 72 HD signal support DVI-I output (and compatible output digital DVI and VGA analog signal), support CVBS, DVI, DL-DVI, VGA, HDMI, YPbPr, SDI, IP network, the input. Detailed features: - HD resolution output, support to 1920 x 1200 and down compatible; Automatic correction of fusion band; Support for arbitrary planar, spherical surface, geometric correction etc.; - the geometric correction accuracy of 0.01 pixels, color accuracy of 1/512; - pure hardware architecture, no CPU and operating systems, no virus infection and the risk of a system crash; - revolutionary backplane switching architecture, modular plug design; - FPGA parallel processing technology, all signal real-time processing; - Multi picture display, can be arbitrary window, zoom, and so on; - hour level installation and commissioning, the non professional staff can master.Board parameter Input card Multiple input card can be any combination of: VGA, DVI, Dual-Link DVI, HDMI, SDI, CVBS, hdbaset, SD-Card, YPbPr/YCbCr, net. Output card DVI-I Control parameters Processor management network 1 Rj-45 interfaces, 10M/100M adaptive, support for communication processor management and configuration. Processor management serial port 2 RS-232, can control the support matrix, and screen for outreach three party equipment. Function parameter Control scale Single maximum controllable 36 projection splicing Graphics ability Supports arbitrary rectangle splicing Support single screen picture segmentation and screen overlay and cross screen display Support the image of arbitrary superposition, roaming, mobile, zoom, cutting, etc. Character stacking OSD characters superimposed, can be superimposed on the input signal of the user can configure the user's character information Geometric correction Support plane, surface and spherical geometry correction Fusion band processing Automatic camera calibration Software parameter Control software Controller MultiView, mosaic processor control software. Environmental parameters Working temperature 0 -70 Working humidity <90% no condensation Maximum power 80W 100W 200W 450W Electrical characteristics The input 100-240V alternating current can automatically adjust the power source, the frequency is 50-60Hz, can insert 4 redundant power source, can N+1 redundancy |
|
