Introduction:
|
数字、高清矩阵 2014-12-1 9:04:38

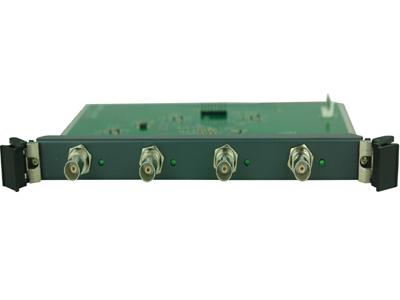

Product introduction: AD-SDI-SS04 seamless output card, is the input signal through the balance and driving after treatment, using the signal recognition, cache, and image scaling technology, follow the ITV-R specification to re generate image, ensure the switching process has no black, no flicker, does not add any transition effects, ensuring the signal in real time, fast switching. The signal bandwidth of 2.97Gbps, maximum support 1080p60 television signal. Product features: The user through dial to select the output resolution The input resolution support 1080p60 or 1600x1200@60hz Automatic balance - input signal function The output signal enhancement function, support for long distance transmission The product parameters: Input card Input 4 SDI signals Input connector mother port BNC connector Output card The output of the 4 SDI signals Output connector mother port BNC connector Routine Gain 0dB Automatic locking rate The operation of standard SMPTE 292M, SMOTE 259M, SMOTE 424M, ITU-RBT.601, ITU-RBT.1120 Input return loss less than -14Db @ 1MHz~1.5GHz The output return loss less than -12Db @ 1MHz~1.5GHz The maximum rate of 2.97Gpbs Data type 8 or 10bit Input output level 0.8Vp-p + 10% Input output impedance of 75 ohms Balanced type automatic The working distance is 100 meters Humidity 10%-90% The temperature of -20~+70 DEG AD-DVI-04 Product Description: AD-DVI-04 is a DVI input signal card, belonging to the MHD series of matrix. It has 4 DVI input interface, support for HDCP. Product features: The output signal of the DVI card and the host matrix with the use of MMX series; - the highest resolution up to 1080P, 1920*1200@60Hz, is fully compatible with HDTV; EDID management - cash, which can support HDCP - compatible with HDMI signal - support hot swappable, guarantee the friendly user experience.
|
