Introduction:
|

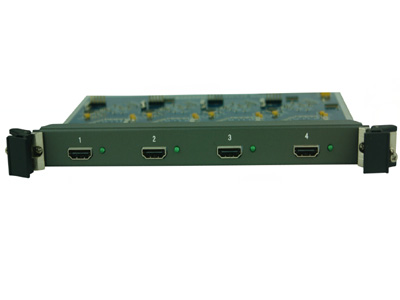

Product Description: AD-HDMI-04 is a HDMI output signal card, belonging to the MHD matrix series. It is provided with 4 HDMI output interface. Product features: The input signal of the HDMI card and the host matrix with the use of MHD series - the highest resolution up to 1080P, 1920*1200@60Hz The output enhancement The maximum transmission distance of 15m DVI - compatible - support hot swappable, HPD indicator light The product parameters: Input card The input signal is 4 HDMI signals Input connector HDMI master port The input level of T.M.D.S.2.9V/3.3V The input impedance of 100 ohm differential Output card The output signal of the 4 HDMI signals Output connector HDMI master port Output level T.M.D.S.2.9V/3.3V 100 ohm output impedance difference Routine Gain 0dB The video signal of all digital T.M.D.S signals The switching rate of 200ns (max) The HDMI standard uses the HDMI1.4 standard EDID management built-in EDID support conventional resolution HDCP management to support broadband digital content protection (HDCP) using DVI and HDMI1.4 standard Wide band 165MHz (1.65Gbps) The maximum time delay 5nS (+ 1Ns) |
