Introduction:
|

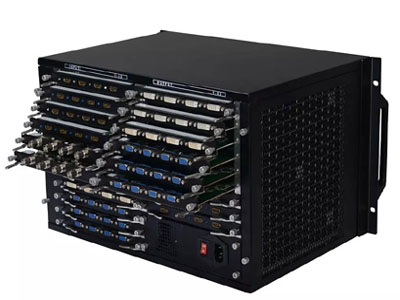

Product introduction: AD-HD36X36 is a modular hybrid matrix loaded 9 input signals and 9 output signals card card. It supports a variety of digital and analog signal card combination, and the cross switching between various signal. It is a complete modular processing scheme provides mixed signal, and can be used for educational institutions, control center, conference rooms, multimedia classrooms and other occasions. Product features: L has configurable input / output signal module matrix host card 4 * 4 to 36 * 36 audio switch support L supports all commonly used input / output signal card, and HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, RJ45 network port, DVI/DVI with audio, VGA/VGA (compatible with audio support YUV, YC) in which the output signal of seamless SD/HD/3G-SDI, DVI, VGA board support. Signal card combinations into any matrix Cross l switching real, signal format is not divided, can be arbitrary input switching to any output L advanced EDID management, guarantee the maximum compatibility L audio video independent switch L support HDMI1.4, support 3D part model L supports the integration of HDBaseT Technology L supports a pair and optical fiber I/O signal transmission card L instantaneous seamless handoff, comfortable and smooth operation L built-in clock recovery, output enhancement function L support according to the key points, RS232 control, TCP/ID control, compatible with third party control L site Hot Swap and electrostatic protection (ESD), L supports power protection, power is not lost and functional parameters setting L international standard power support (AC100~AC240V, 50/60Hz), security authentication L compatible HDCP content protection protocol The product parameters: Video input and 9 MHD series input card Input signal types HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, a RJ45 network interface, DVI/DVI band, VGA/VGA band audio audio The video output of 9 MHD series input card Output signal types HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, a RJ45 network interface, DVI/DVI with audio, VGA/VGA with audio, SD/HD/3G-SDI seamless, DVI Seamless, seamless VGA Control button, double RS232.TCP/IP protocol The power consumption is 100AVC~240ANC, 50/60Hz; 200W Safe mode standby power input Size 433* deep 335* 355 (8U) The weight of 10.5Kg |
