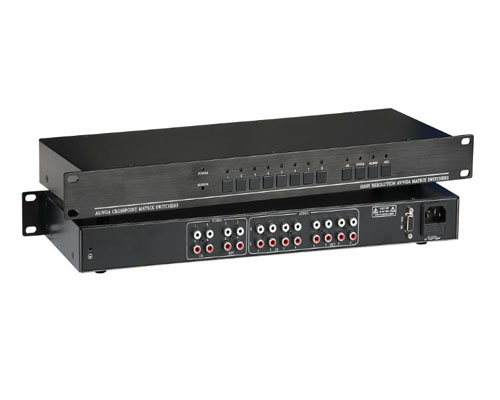

Video
Gain: 0 dB
Bandwidth: 200MHz (-3dB), full
0-10MHz: ≤ + / - 0.1dB
0-30MHz: ≤ + / - 0.5dB
Multi channel to channel crosstalk and: -50dB @ -45dB @ 5 MHz, 10 MHz
Differential phase I/0S: <; 1.28, 3.58MHz
Differential phase error: 0.1 degrees, 3.58-4.43MHz
Differential gain error: 0.1%, 3.58-4.43MHz
Maximum transmission delay: 5nS (+ 1nS)
The switching speed: 200 ns (the most long time)
Signal type: composite video signal
Video input
Interface: RCA interface
Minimum / maximum level: 0.5V ~ 2.0V P-P (Analog)
Impedance: 75 ohms
The return loss: -30dB@5MHz
Synchronous: 0.3V-0.4Vp-p
Maximum DC offset error: 15mV
Video output
Interface: RCA interface
Minimum / maximum level: 0.5V ~ 2.0V P-P (Analog)
Impedance: 75 ohms
The return loss: -30dB@5MHz
The DC bias: ± 5mV
Switch type: vertical interval
Synchronous signal
Input / output type: NTSC 3.58, NTSC4.43, PAL, SECAM
Sound signal
The input interface: RCA interface
Output interface: RCA interface
Gain: 0dB
Frequency response: 20 Hz ~ 20 kHz
Total harmonic distortion + noise: 0.03% @ 1 kHz (rated voltage)
Signal to noise ratio (S/N): >; 90dB
Stereo separation: >; 80dB @ 1 kHz
The chroma brightness interference: <; -80dB @ 1 kHz, full
Common mode rejection ratio (CMRR): >; 75dB @: 20 Hz ~ 20 kHz
Signal type: stereo (balanced / unbalanced connection)
Input impedance: >; 10 K Ω (balanced or unbalanced / connected); output: 50Ω (non equilibrium method), 100 Ω (balance meth
Maximum input level: +19.5dBu
Gain error: ± 0.1dB @20 Hz ~ 20 kHz
The maximum output level: +19.5dBu
RS-232 control interface
Serial control interface: RS-232, 9- pin female D interface
The baud rate and protocol: baud rate: 9600, data bits: 8,: 1 stop bit, no parity
The serial control port structure: 2 = TX, 3 = RX, 5 = GND
KEYBOARD control interface (optional)
KEYBOARD control interface: 9- pin female D interface
Use method: with extended supporting the use of the keyboard KT-B8W
The KEYBOARD control structure: +5V=DC5V, -=DATA- + = DATA+, GND =signal
The Ethernet interface (optional)
The Ethernet interface: RJ-45 bus interface
Ethernet control protocol: TCP/IP
Ethernet control rate: adaptive 10M or 100M, full duplex or half duplex
Specifications
Power supply: 100VAC ~ 240VAC, 50/60 Hz, the adaptive power supply
Power: 30W
Temperature storage, the use of temperature: -20 degrees to +70 degrees C
Humidity storage, the use of humidity: 10% ~ 90%
Mean time between failures: 60000 hours
Size: 26.5 *44 long *4.5 high |
