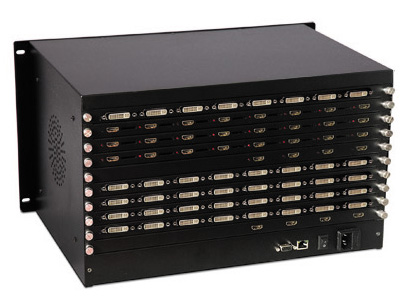

Seamless processor 36 series models: AD-HD36X36

Description:

Introduction

Product description:
MDI HD mixture card matrix switcher is a digital and analog mixed card signal switcher, support HDMI, DVI, VGA (RGB), SDI, AV (CVBS, audio and S-VEDIO), YPbPr (component), HDBaset twisted pair cable, fiber optic fiber and signal format of arbitrary cross switching lose into the output. MDI series hybrid host supports EDID automatic acquisition technology, using HDMI1.4 version, compatible with HDCP and 3D video signal. Have good performance, maintenance is simple.
Common features:
HDMI, DVI, VGA, SDI (RGB),, AV (Audio, S-Vedio, CVBS), YPbPr (component), HDBaset twisted pair, Fiber fiber, etc..
- S3C2440X2 architecture processor, running faster and more stable system
- XC3S200A, FPGA, performance is more stable;
Choose a variety of seamless handover, such as delay switching and transition switching
- dynamic detector technology and TrueLife Enhancement technology can effectively eliminate the noise and interference;
- 6.5GHz high bandwidth chip, the image is particularly clear;
- using HDMI 1.4 version, in accordance with HDCP standards;
- supports 4K HD signal and 3D video signal;
- HDCP compatible, support genuine blue DVD signal reproduction and switching, distribution;
- input and output with automatic equalization, the effective reduction of the transmission of the line and lead to the determination of jitter (ISI);
- using HDMI 1.4 version, in accordance with HDCP standards and EDID access technology
- one of the EDID automatic editing, read the fastest 50N seconds;
Support signal retiming, CEC, 36 bit color technology;
Digital synchronous recognition processing (DSIP) technology
- with clock instructions, you can set the password lock
- support seamless integration of CMMAW and CCSEB power management technology;
- 3D new blue matrix display, full Chinese display working status
Built in round robin function, can set the interval time and channel
- 32 sets of memory functions, can be directly in the panel operation
- support single card 4/8 input and output cards, the maximum support input 36, output 36;
- support RS232, TCP/IP, infrared remote control, in control and other control methods
- support Blu ray DVD24/50/60fs/HD-DVD/xvYCC;
- support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD;
With network control (optional), USB, serial port, infrared, panel, a variety of control methods, and direct support for the control system
- this product has the functions of switching memory protection, video synchronization or separate switch, etc., with RS232 communication interface. It can be used in conjunction with computer, remote control system and various remote control devices (such as macro control and other control systems);
- Universal wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz;
- high quality, mass production, with high compatibility and stability, has a high cost;
Technical parameters:
MDI HD digital analog mixed interpolation matrix switch technology parameters
Category:MDI-III mixed interpolation matrix
Gain dB:0
Interface bandwidth:6.5GHz (-3Db) full load
Pixel bandwidth Hz:225M
Bit clock jitter: Tbit <0.15
Bit rise time: <0.3Tbit (20%-80%)
Bit down time: <0.3Tbit (20%-80%)
HDMI-A full digital T.M.D.S signal in signal type:HDMI1.4 specification
Support protocols:HDMI1.4, DVI1.0, HDCP
Switching speed:5nS (+ 1nS)
Support resolution: Normal-PC:1600*1200@60Hz24bit, HDPC:1920*1200@60Hz24bit, HDTV:1920*1080P@60Hz36bit, 4K
Interface type:HDMI, DVI, BNC, SDI, YPbPr, VGA, RJ45, RCA, Fiber
Signal strength +/-0.4Vpp:T.M.D.S
Level:T.M.D.S2.9V/3.3V
Impedance:75
Return loss to 1.5GHz:<-15dB@1MHz
Display data channel 5 Vp-p (TTL)
Input:50ns EDID EDID editor
Clock recovery: Auto
Control interface 9-,:RS-232 pin mother D type interface
Baud rate: baud rate: 9600, 8: data bits, stop bits: 1, no parity
Serial port structure:2 = TX, 3 = RX, 5 = GND
Keyboard control: matching the use of KEYBOARD and expand the keyboard KT-B8W
Control interface:4 pin Phoenix
Usage: with the expansion of the keyboard KT-B8W supporting the use of
Network control: support TCP/IP protocol (optional)
Control interface:RJ-45 master interface
Power:100VAC ~ 50/60, Hz 240VAC, the international adaptive power supply
Temperature: storage, use temperature: -20 ~ C ~ +70
Humidity: storage, use humidity: 10% ~ 90%
Case size: Standard 6U case
Average failure:60000 hours
