Introduction:
|

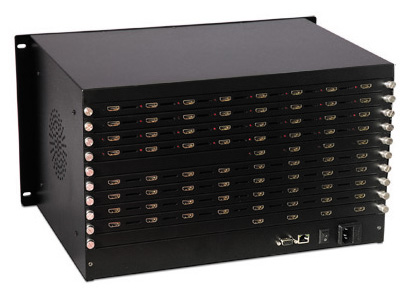

Product description: 1, the use of S3C2440 processor, running faster, more stable system 2, the use of FPGA programmable logic array circuit XC3S200A, performance is more stable 3, using high-speed digital switching technology, the perfect solution, ghosting and smearing crosstalk. 100% video effects of real return input signals 4, the use of 6.5GHz high bandwidth chip, the image is particularly clear 5, the use of HDMI 1.4 version, in accordance with HDCP standards and EDID access technology 6, compatible with the resolution of all 1080p/60 including HDTV and 1920*1200 resolution of up to PC 7, long-term input automatic balance - to ensure that each input is independent of automatic compensation due to long distance transmission or use of low quality wire caused by signal loss 8. Support HDMI1.4 and DVI1.0 protocol. High color depth, as well as up to 6.5Gbps rate 9, HDCP compatible - to ensure that the contents of the protection of the media can be normal display and other HDCP compatible with the use of equipment 10, support signal retiming, CEC, 36 bit color technology 11, 36 way HDMI audio and video signal input; 36 HDMI audio and video signal output 12, HDMI input and output end use import HDMI-A interface 13, plug-in design, support 4 or 8 single channel signal card 14, with 18 channel signal card slot, a single card with a minimum of 4 15, a pair of a EDID automatic editing, read the fastest 50N seconds 16, the use of digital synchronous recognition processing (DSIP) technology 17, with clock instructions, you can set the password lock 18, support the seamless integration of CMMAW technology and CCSEB power management technology; 19, the use of 3D new blue matrix display, full Chinese display working state 20, built-in round robin function, can set the interval time and channel 21, built-in 32 set of scene storage functions, can be directly in the panel operation 22, support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD; 23, the use of high-quality HDMI 1.4 version of the cable, the transmission distance of 20 meters, the output transmission distance of 30 meters 24, special port, can be directly connected with the wireless touch screen, plug and play 25, the whole chip SMD process, the specific function of ESD electrostatic protection 26, the product with the power switch on the scene to switch memory, video synchronization or separation and switching functions, with RS232 communication interface, it can be convenient with the computer, remote control system or a variety of remote control equipment (such as macro control and other control system) with the use of 27, the global wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz; 28, high quality, mass production, there is a high compatibility and stability, has a high cost Technical parameters: Product category: DVI matrix switcher - interface bandwidth: 6.5GHz (-3Db) full load - gain dB:0 - pixel bandwidth: 225 MHz full digital Clock jitter: Tbit <0.15 Rise time: <0.3Tbit (20%--80%) Decrease time: <0.3Tbit (20%--80%) - Protocol: support HDMI1.4, HDMI1.3, HDCP, DVI1.0 protocol - switching speed: 200 ns (maximum time) - supported resolution: HDPC:, 1920x1200P@ 60_24bit Normal-PC:1600x1200@60_24bit, -:1920x1080P@60_36bit HDTV A type 19 pin female head for interface:HDMI Signal strength: T.M.D.S + / - 0.4Vpp. - level information: 2.9V/3.3V T.M.D.S Impedance:50 - input EDID:50ns fast EDID edit Enter distance: less than 20 meters (line of sight) - output distance: less than 30 meters (line of sight) Control interface: RS-232, 9- pin mother D type interface - baud rate: baud rate: 9600, 8: data bits, stop bits: 1, no parity - serial structure: 2 = TX, 3 = RX, 5 = GND - keyboard control: matching the use of KEYBOARD and extended keyboard KT-B8W Control interface: 4 pin Phoenix - use: with the expansion of the keyboard KT-B8W supporting the use of Network controls: support for the TCP/IP protocol (optional) Control interface: RJ-45 master interface - power:100VAC ~ 50/60, Hz 240VAC, international adaptive power supply Temperature: storage, use of temperature: -20 ~ C ~ +70 Humidity: storage, use of humidity: 10% ~ 90% - Case Size: Standard 6U case - average failure: 60000 hours |
