1, the use of Samsung S3C2440 processor, running faster, more stable system
2、采用FPGA可编程逻辑阵列电路XC3S200A，性能更稳定；
2, the use of FPGA programmable logic array circuit XC3S200A, performance is more stable;
3、采用高速数字交换技术，完美解决串扰、重影与拖尾现象。100%真实重现输入信号的视频效果；
3, using high-speed digital switching technology, the perfect solution, ghosting and smearing crosstalk. 100% video effects of real return input signals;
4、采用美国4.5GHz高带宽芯片，图像特别清晰；
4, using the United States 4.5GHz high bandwidth chip, the image is particularly clear;
5、兼容 HDMI 1.4版本，符合 HDCP 标准；
5, compatible with HDMI 1.4 version, in accordance with HDCP standards;
6、支持信号时序重整, CEC, 36位真彩技术
6, support signal retiming, CEC, 36 bit color technology
7、采用数字同步识别处理（DSIP）技术
7, the use of digital synchronous recognition processing (DSIP) technology
8、支持无缝集成CMMAW技术和CCSEB电源管理技术；
8, support the seamless integration of CMMAW technology and CCSEB power management technology;
9、采用3D全新蓝色矩阵式显示屏，全中文显示工作状态
9, the use of 3D new blue matrix display, full Chinese display working state
10、内置轮循切换功能，能任意设定间隔时间和通道
10, built-in round robin function, can set the interval time and channel
11、内置32组场景存储功能，能直接在面板操作
11, built-in 32 set of scene storage functions, can be directly in the panel operation
12、12、10路HDMI音视频信号输入；12、8、6、4、2路 HDMI音视频信号输出；
12, 12, 10 HDMI audio and video signal input; 12, 8, 6, 4, 2 HDMI audio and video signal output;
13、支持蓝光DVD24/50/60fs/HD-DVD/xvYCC；
13, support Blu ray DVD24/50/60fs/HD-DVD/xvYCC;
14、支持音频格式DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD；
14, support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD;
15、使用高品质HDMI 1.3版本的线缆，输入传输距离可达20米，输出传输距离可达30米
15, the use of high-quality HDMI 1.3 version of the cable, the transmission distance of 20 meters, the output transmission distance of 30 meters
16、HDMI输入和输出端采用进口HDMI接口；
16, HDMI input and output end use import HDMI interface;
17、专用端口，能直接和宏控无线触摸屏连接，即插即用；
17, special port, can directly and macro control wireless touch screen connection, plug and play;
18、全贴片SMD工艺，特有ESD静电保护功能；
18, the whole chip SMD process, the specific function of ESD electrostatic protection;

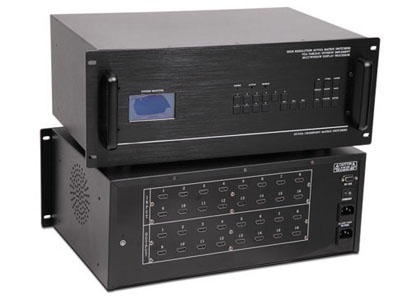

19、宏控系列HDMI矩阵切换器是专门为HDMI视频信号的显示切换而设计的高清智能矩阵开关设备，用于将各路HDMI视频输出通道中的任一通道上，该系列产品广泛用于大屏幕投影显示工程、电化教学、指挥控制中心、多媒体会议室等场合；
19 and macro control series HDMI matrix switch is dedicated to the HDMI video signal switching of display and design intelligent HD matrix switching equipment for various HDMI video output channel to any channel, the series of products are widely used in large screen projection display engineering, audio-visual teaching, command and control center, multi-media conference room and other places;
20、本产品是具有高可靠性的智能设备，设计中采用容错技术，并采用了高抗干扰能力的通信接口电路，保证了通信的可靠性，具有红外遥控功能和RS232通信功能，用户可以方便的完成演示过程中的信号切换；
20, this product is a smart device with high reliability, the design adopts fault tolerance technology, and adopts the high anti-interference ability of the communication interface circuit to ensure the reliability of communication, with infrared remote control function and RS232 communication function, users can easily complete the demonstration process of signal switching;
21、本产品带有断电现现场切换记忆保护、视频同步或分离切换等功能，具备RS232通讯通讯接口，可以方便与电脑、遥控系统或各种远端控制设备（如宏控和其他控制系统）配合使用；
21, the product with the power is now the site to switch memory protection, video synchronization or separation and switching functions, with RS232 communication interface, it can be convenient with the computer, remote control system or a variety of remote control equipment (such as macro control and other control system) with the use of;
22、全球通用宽电压设计，可适应交流100～240V，50/60Hz；
22, the global wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz;
23、高品质、大批量生产，有较高的兼容性和稳定性，有较高的性价比
23, high quality, mass production, there is a high compatibility and stability, has a high cost
HDMI视频：
HDMI video:
接口带宽:4.5GHz（-3Db）满载
Interface bandwidth: 4.5GHz (-3Db) full load
增益：0dB
Gain: 0dB
像素带宽:225 MHz
Pixel bandwidth: 225 MHz
位上升时间：0.6 NS (20%--80%)
Bit rise time: 0.6 NS (20%--80%)
位下降时间：0.6 NS (20%--80%)
Bit down time: 0.6 NS (20%--80%)
支持最高协议：HDMI1.4 协议
Supports the highest protocol: HDMI1.4 protocol
切换速度:200 ns(最长时间)
Switching speed: 200 ns (the longest time)
最大支持分辨:Normal-PC：1600x1200@60_24bit, HDPC: 1920x1200P@ 60_24bit, HDTV：1920x1080P@60_36bit
Maximum support resolution: Normal-PC:1600x1200@60_24bit, 1920x1200P@ 60_24bit HDPC:, HDTV:1920x1080P@60_36bit
HDMI视频输入：
HDMI video input:
接 口：HDMI 接口 A 型 19 针母头
HDMI interface: A type 19 pin female head
最小/最大电平：0.5 V至1.0 Vp-p 无偏移
Min / max level: 0.5 Vp-p to 1 V no offset
数字视频电平 ：1.2 Vp-p
Digital video level Vp-p:1.2
阻 抗：100Ω
Resistance: 100
回波损耗：-15dB @1MHz to 1.5GHz
Return loss: @1MHz to 1.5GHz -15dB
显示数据通道：5.0 Vp-p (TTL)
Display data channel: 5 Vp-p (TTL)
TDR上升时间：75 PS
TDR rise time: 75 PS
时钟恢复：自动
Clock recovery: automatic
HDMI视频输出：
HDMI video output:
接 口：HDMI 接口 A 型 19 针母头
HDMI interface: A type 19 pin female head
最小/最大电平：0.5 V至1.0 Vp-p 无偏移
Min / max level: 0.5 Vp-p to 1 V no offset
数字视频电平 ：1.2 Vp-p
Digital video level Vp-p:1.2
阻 抗：100Ω
Resistance: 100
回波损耗：-15dB @1MHz to 1.5GHz
Return loss: @1MHz to 1.5GHz -15dB
显示数据通道：5.0 Vp-p (TTL)
Display data channel: 5 Vp-p (TTL)
TDR上升时间：75 PS
TDR rise time: 75 PS
时钟恢复：自动
Clock recovery: automatic
RS-232控制接口：
RS-232 control interface:
串行控制接口：RS-232, 9-针母 D型 接口
Serial control interface: RS-232, 9- pin mother D interface
波特率与协议:波特率：9600, 数据位：8位, 停止位：1, 无奇偶校验位
The baud rate and protocol: baud rate: 9600, 8: data bits, stop bits: 1, no parity
串行控制口结构：2 = TX, 3 = RX, 5 = GND
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
KEYBOARD控制接口 （选配）：
KEYBOARD control interface (optional):
控制接口:4针凤凰座
Control interface: 4 pin Phoenix
使用方式:与扩展键盘KT-B8W配套使用
Usage: with the expansion of the keyboard KT-B8W supporting the use of
控制口结构:+5V=DC5V , + = DATA+, -=DATA- GND = 信号地
Control port structure: +5V=DC5V, + = -=DATA-, GND = DATA+ = signal
以太网控制接口 （选配）：
Ethernet control interface (optional):
以太网控制接口:RJ-45母接口
Ethernet control interface: RJ-45 master interface
以太网控制协议:TCP/IP
Ethernet control protocol: TCP/IP
以太网控制速率:自适应10M或100M,全双工或半双工
Ethernet control rate: adaptive 10M or 100M, full duplex or half duplex
规 格：
Gauge:
电 源：100VAC ～ 240VAC, 50/60 Hz, 国际自适应电源
240VAC ~ 100VAC, Hz 50/60, international adaptive power supply
温 度：储存、使用温度: -20°～ +70°C
Temperature: storage, use temperature: -20 ~ C ~ +70
湿 度：储存、使用湿度:10% ～ 90%
Humidity: storage, use of humidity: 10% ~ 90%
平均故障间隔时间：60,000 小时
Mean time to failure: 60000 hours
质保:1年免费保修,终生维护
Warranty: 1 year free warranty, life-long maintenance
产品 配置中心
Product configuration center
型号 HDMI-1212 HDMI-1210 HDMI-1208 HDMI-1010
Model HDMI-1210 HDMI-1208 HDMI-1010 HDMI-1212
尺寸（MM） 482长*282宽*180高(4U) 482长*282宽*180高(4U) 482长*282宽*180高(4U) 482长*282宽*180高(4U)
Size (MM) 482 long *282 wide *180 high (4U) 482 long *282 wide *180 high (4U) 482 long *282 wide *180 high (4U) 482 long *282 wide *180 high (4U)
重量（KG） 17.3KG 16.4KG 16.2KG 15.8KG
Weight (KG) 16.4KG 16.2KG 15.8KG 17.3KG
产品配置 矩阵切换器主机*1
Product configuration matrix switcher host *1
红外遥控器*1
Infrared remote control *1
使用说明书*1
Instruction *1
软件光盘*1
Software *1
电脑串口线*1
Computer serial line *1 |
