1, the use of Samsung S3C2440 processor, running faster, more stable system
2, the use of FPGA programmable logic array circuit XC3S200A, performance is more stable;
3, using high-speed digital switching technology, the perfect solution, ghosting and smearing crosstalk. 100% video effects of real return input signals;
4, using the United States 4.5GHz high bandwidth chip, the image is particularly clear;
5, compatible with HDMI 1.4 version, in accordance with HDCP standards;
6, support signal retiming, CEC, 36 bit color technology
7, the use of digital synchronous recognition processing (DSIP) technology
8, support the seamless integration of CMMAW technology and CCSEB power management technology;
9, the use of 3D new blue matrix display, full Chinese display working state
10, built-in round robin function, can set the interval time and channel
11, built-in 32 set of scene storage functions, can be directly in the panel operation
12, 4 way HDMI audio and video signal input; 4 HDMI audio and video signal output;
13, support Blu ray DVD24/50/60fs/HD-DVD/xvYCC;
14, support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD;
15, the use of high-quality HDMI 1.3 version of the cable, the transmission distance of 20 meters, the output transmission distance of 30 meters
16, HDMI input and output end use import HDMI interface;
17, special port, can directly and macro control wireless touch screen connection, plug and play;
18, the whole chip SMD process, the specific function of ESD electrostatic protection;
19 and macro control series HDMI matrix switch is dedicated to the HDMI video signal switching of display and design intelligent HD matrix switching equipment for various HDMI video output channel to any channel, the series of products are widely used in large screen projection display engineering, audio-visual teaching, command and control center, multi-media conference room and other places;
20, this product is a smart device with high reliability, the design adopts fault tolerance technology, and adopts the high anti-interference ability of the communication interface circuit to ensure the reliability of communication, with infrared remote control function and RS232 communication function, users can easily complete the demonstration process of signal switching;
21, the product with the power is now the site to switch memory protection, video synchronization or separation and switching functions, with RS232 communication interface, it can be convenient with the computer, remote control system or a variety of remote control equipment (such as macro control and other control system) with the use of;
22, the global wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz;
23, high quality, mass production, there is a high compatibility and stability, has a high cost
HDMI video:
Interface bandwidth: 4.5GHz (-3Db) full load
Gain: 0dB
Pixel bandwidth: 225 MHz
Bit rise time: 0.6 NS (20%--80%)
Bit down time: 0.6 NS (20%--80%)
Supports the highest protocol: HDMI1.4 protocol
Switching speed: 200 ns (the longest time)
Maximum support resolution: Normal-PC:1600x1200@60_24bit, 1920x1200P@ 60_24bit HDPC:, HDTV:1920x1080P@60_36bit
HDMI video input:
HDMI interface: A type 19 pin female head
Min / max level: 0.5 Vp-p to 1 V no offset
Digital video level Vp-p:1.2
Resistance: 100
Return loss: @1MHz to 1.5GHz -15dB
Display data channel: 5 Vp-p (TTL)
TDR rise time: 75 PS
Clock recovery: automatic
HDMI video output:
HDMI interface: A type 19 pin female head
Min / max level: 0.5 Vp-p to 1 V no offset
Digital video level Vp-p:1.2
Resistance: 100
Return loss: @1MHz to 1.5GHz -15dB
Display data channel: 5 Vp-p (TTL)
TDR rise time: 75 PS
Clock recovery: automatic
RS-232 control interface:
Serial control interface: RS-232, 9- pin mother D interface
The baud rate and protocol: baud rate: 9600, 8: data bits, stop bits: 1, no parity
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
KEYBOARD control interface (optional):
Control interface: 4 pin Phoenix
Usage: with the expansion of the keyboard KT-B8W supporting the use of
Control port structure: +5V=DC5V, + = -=DATA-, GND = DATA+ = signal
Ethernet control interface (optional):
Ethernet control interface: RJ-45 master interface
Ethernet control protocol: TCP/IP
Ethernet control rate: adaptive 10M or 100M, full duplex or half duplex
Gauge:
240VAC ~ 100VAC, Hz 50/60, international adaptive power supply
Temperature: storage, use temperature: -20 ~ C ~ +70
Humidity: storage, use of humidity: 10% ~ 90%
Mean time to failure: 60000 hours
Warranty: 1 year free warranty, life-long maintenance
Product configuration center

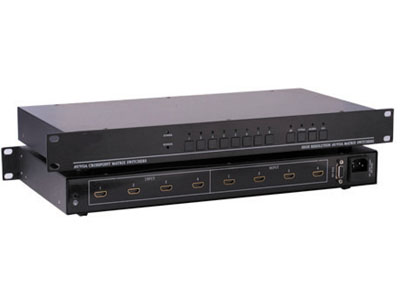

Model HDMI-404
Size (MM) 482 long *215 wide *45 high (1U)
Weight (KG) 4.1KG
Product configuration matrix switcher host *1
Infrared remote control *1
Instruction *1
Software *1
Computer serial line *1
