1, the use of Samsung S3C2440 processor, running faster, more stable system
2, the use of FPGA programmable logic array circuit XC3S200A, performance is more stable;
3, using the United States DM355 company TI digital video processing chip, the image is particularly clear;
4, using the United States THS7327 company RGB long distance TI driver chip, driving distance of up to 80 meters
5, the use of 750M high bandwidth chip, with long-term driver;
6, support 2048X1536 high resolution design circuit
7, the signal is used to transmit the distortion of the long distance transmission technology;
8, the use of digital synchronous recognition processing (DSIP) technology
9, support the seamless integration of CMMAW technology and CCSEB power management technology;
10, the use of 3D new blue matrix display, full Chinese display working state
11, built-in round robin function, can set the interval time and channel
12, built-in 32 set of scene storage functions, can be directly in the panel operation
16, 13 way RGB computer signal input; 16, 8 road RGB computer signal output;
14, RGB video input and output end uses 5 BNC mother interface;
15, special port, can directly and macro control wireless touch screen connection, plug and play;
16, the whole chip SMD process, the specific function of ESD electrostatic protection;
17 and macro control series RGB video switcher is dedicated to the RGB video signal display switch and design of high performance intelligent matrix switching equipment for various RGB video output channel to any channel, the series of products are widely used in large screen projection display engineering, audio-visual teaching, command and control center, multi-media conference room and other places;
18, this product is a smart device with high reliability, the design adopts fault tolerance technology, and adopts the high anti-interference ability of the communication interface circuit to ensure the reliability of communication, with infrared remote control function and RS232 communication function, users can easily complete the demonstration process of signal switching;
19, the product with the power is now the site to switch memory protection, video synchronization or separation and switching functions, with RS232 communication interface, it can be convenient with the computer, remote control system or a variety of remote control equipment (such as macro control and other control system) with the use of;
20, the global wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz;
21, high quality, mass production, there is a high compatibility and stability, has a high cost
RGB video
Gain: 0 dB
Bandwidth: 750MHz (-3dB), full load
0 -10MHz @ +0.1dB
0 -100MHz@+0.6dB
-60dB MHz -39dB, @100 MHz, @10
Differential phase <1.28 3.58MHz, I/0S:
Differential phase error: 0.1 degree, 3.58-4.43MHz
Differential gain error: 0.1%, 3.58-4.43MHz
Maximum transmission delay: 5nS (+ 1nS)
Switching speed: 200 ns (the longest time)
Signal types: RGBHV, RGBS, RGsB, RsGsBs, high definition television (HDTV), YCbCr/YPbPr component (video component), S-video, composite visual frequency (CVBS)
RGB video input
Interface: BNC master interface
Min / max level: 2.0V ~ P-P 0.5V
Impedance: 75
Echo loss: -30dB@5MHz
Signal strength: P-P 1V component video or Y in, composite video; P-P RGB 0.7V (computer signal); P-P 0.3V component video in Cb/Pb or Cr/Pr, S-video C S-video
Maximum DC bias error: 15mV
RGB video output
Interface: BNC master interface
Min / max level: 2.0V ~ P-P 0.5V
Impedance: 75
Echo loss: -30dB@5MHz
DC bias: maximum 5mV
Synchronous signal
Input / output type: RGBHV, RGBS, RGsB, RsGsBs
Input level: 5.0V P-P 0.5V-, P-P 4.0V
Output level: 5Vp-p unterminated, AGC-TTL:
Input impedance: 510
Output impedance: 75
Maximum rise / fall time: 4ns
Maximum transmission delay: horizontal: 90ns vertical: 160ns
Polarity: positive or negative (consistent with input)
RS-232 control interface
Serial control interface: RS-232, 9- pin mother D interface
The baud rate and protocol: baud rate: 9600, 8: data bits, stop bits: 1, no parity
Serial control port structure: 2 = TX, 3 = RX, 5 = GND
KEYBOARD control interface (optional)
Control interface: 4 pin Phoenix
Usage: with the expansion of the keyboard KT-B8W supporting the use of
Control port structure: +5V=DC5V, + = -=DATA-, GND = DATA+ = signal
Ethernet control interface: (optional)
Ethernet control interface: RJ-45 master interface
Ethernet control protocol: TCP/IP
Ethernet control rate: adaptive 10M or 100M, full duplex or half duplex
Gauge
Power supply: 240VAC ~ 50/60, Hz 100VAC, international adaptive power supply
Power: 30W
Temperature: storage, use temperature: -20 ~ C ~ +70
Humidity: storage, use humidity: 10% ~ 90%
Mean time to failure: 60000 hours
Warranty: 1 year free warranty, life-long maintenance
Product configuration center

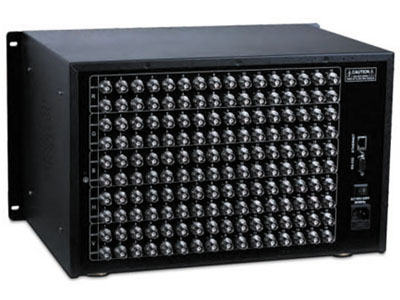

Model RGB-1608 RGB-1604 RGB-1616
Size (MM) 482 long *282 wide *270 high (6U) 482 long *282 wide *270 high (6U) 482 long *282 wide *270 high (6U)
Weight (KG) 18.1KG 17.60KG 18.8KG
Product configuration matrix switcher host *1
Infrared remote control *1
Instruction *1
Software *1
Computer serial line *1
